Description

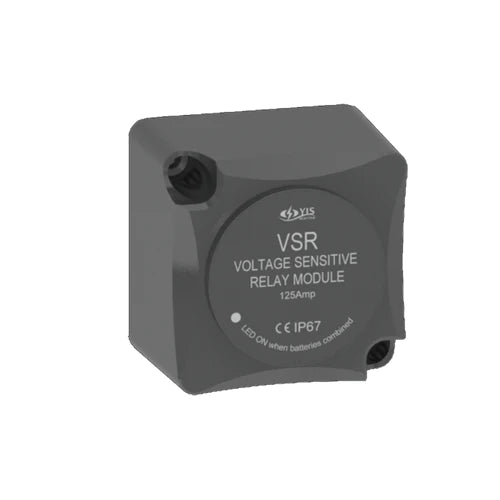

Automatically combines two batteries when charging and isolates the two batteries when not charging
● No voltage drop comparing to battery isolator diodes (0.6v)
● Robust Glass Fibre reinforced Nylon enclosure
● Built-In LED function (On when VSR engages)
● Surface or Panel Mount options Specifications
● Normal Voltage: DC 12v
● Combine / Open Voltage: DC 13.7v / 12.8v
● Continuous Current Rating: 125A
● Intermittent Current Rating: 140A
● Power Consumption: 10mA (Standby) / 33mA (Engaged)
