Description

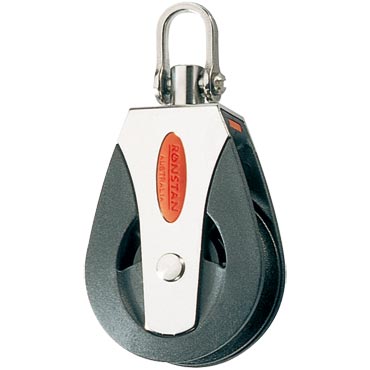

Ideal for high load applications. Wear resistant sheave material, in lightweight, self lubricating polymer, is suitable for use with rope or wire.Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required
Product Specifications
| Sheave Ø | 50 mm |
|---|---|
| Max. Rope Ø | 12 mm |
| Max. Cable Ø | 5 mm |
| Pin Ø | 5.0 mm |
| M.W.L. | 750 kg |
| B. L. | 1500 kg |
| Weight | 117 g |
