Description
Introducing the Oil Change System Kit by Jabsco - a sophisticated solution for effortless onboard oil changes. This self-contained kit features a durable self-priming flexible impeller pump attached to a convenient base with a cover, connected to a five-port

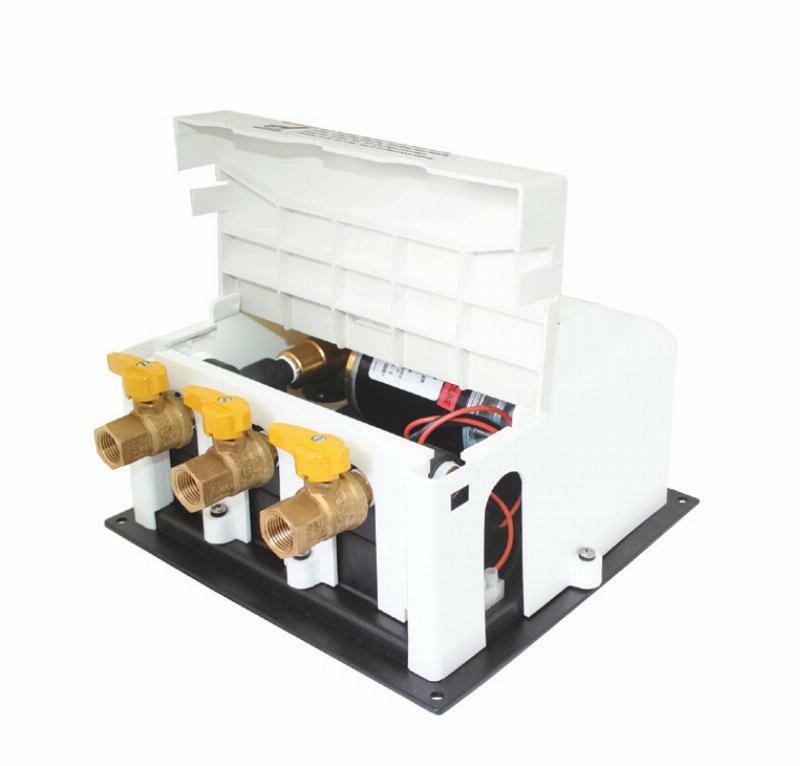

A completely self contained permanently mounted kit to change engine and transmission oil on board. The Jabsco oil change system consists of a robust self priming fl exible impeller pump mounted to an easy to install base with cover and coupled to a fi ve port manifold, factory fi tted with three x 12mm full fl ow ball valves. The system should be installed in the vessels engine room permanently plumbed to the engines oil pans or transmission oil sump. The fi ve port manifold allows an additional two ball valves to be fi tted, if desired, to drain up to fi ve oil reservoirs. The system can be used to remove the old oil and then by using the integral reversing switch, pump a measured amount of new oil back into the engine or transmission. The system includes a hinged cover for easy accessibility and an added safety measure is that the valve cover will not close after an oil change unless all valves are securely closed.
Total size : Length 276mm Width 260mm Height 159mm
