Description
The Aero Range of filler caps produce the largest range of aftermarket tank filler caps to suit any application, small or large. They can with stand most automotive fluids including: fuel, oil & water.
Here at Cassell Marine we carry the Aero Range in three sizes with different mounting and styles available. To operate the caps is simple. To release the filler cap, lift the lever to vertical, turn and pull the cap out. To replace and secure the cap, place the cap in the mounting flange, turn the lever to the central position and snap the lever down or closed.

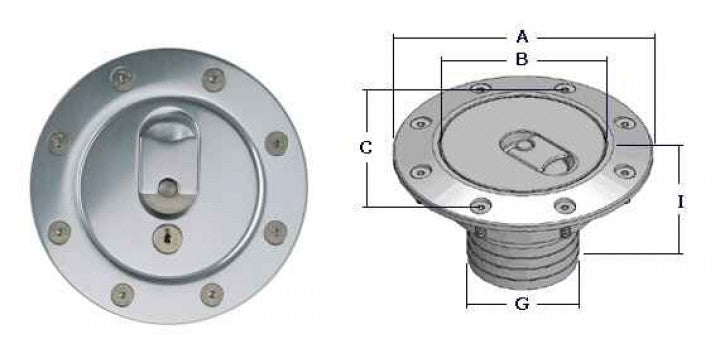

AERO48: The Aero 400 style is the industry standard with it large size based closely off aircraft style caps. We carry this size in one style only , a neck style filler cap designed to bolt to a guard or panel for remote filling. Machined from 6082/T6 Aluminium Alloy
|
Part Number |
AERO48NL |
|
Flange Diameter (A) |
120.0mm |
|
Cap Diameter (B) |
77.0mm |
|
Bolt Centre (C) |
101.6mm |
|
Overall Depth (I) |
65.5mm |
|
Bore |
58.0mm |
|
Spigot |
77.0mm |
|
Body Diameter |
71.0mm |
|
Neck Diameter (G) |
52.0/58.0mm |
|
Flange Thickness |
7.25mm |
|
Locking |
Yes |
