Description
SSC62 Type push in quick connect cables - no tools required.
Cable connects via a quick connect hand pin that is easy to remove and replace.
Stainless steel cable outlet end minimises corrosion.
Convenient 7/8" tilt tube mount nut as per ABYC/NMMA and BIA standards.
Fits directly to TFX rotary helms,
Commonly known as Safe-T II, QC or Quick Connect, and 4.2nfb tilt or standard helms.
Specifications:
* Minimum bend radius: 200mm
* Minimum channel thickness: 23mm

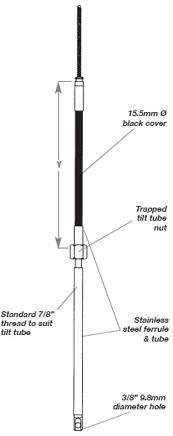

How to measure Cable Length (see diagram)
Length is measured from the helm insert nut (where the pin holds the cable) to the tilt tube attachment nut, plus 450mm.
Y measurement + 450mm = cable length.
