Super cassellmarine.com special on these Teleflex Steering kits - UNBEATABLE!!!!
The most popular boat steering system ever made.
Quick response 3.0 turn system rated for all outboards to V6. Also suitable for inboard applications.
Simple and reliable connection at the helm makes installation a snap.
• Compact rotary helm occupies minimal space behind dash
• Cable will fit through minimum channel of 23mm
• Standard 3/4” tapered steering wheel shaft
• Stainless steel cable output end minimises corrosion
• Meets ABYC, NMMA and BIA requirements

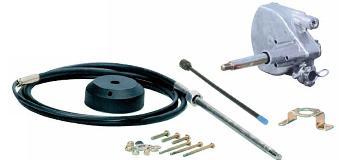

• 1 x 280132 single cable helm
• 1 x 280154 90deg black bezel (specify if you require a white or 20 deg bezel)
• 1 x 2811XX cable (to be specified)

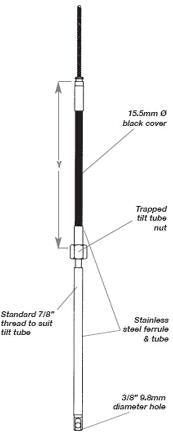

How to measure Cable Length (see diagram)
Length is measured from the helm insert nut (where the pin holds the cable) to the tilt tube attachment nut, plus 450mm.
Y measurement + 450mm = cable length.
