Description

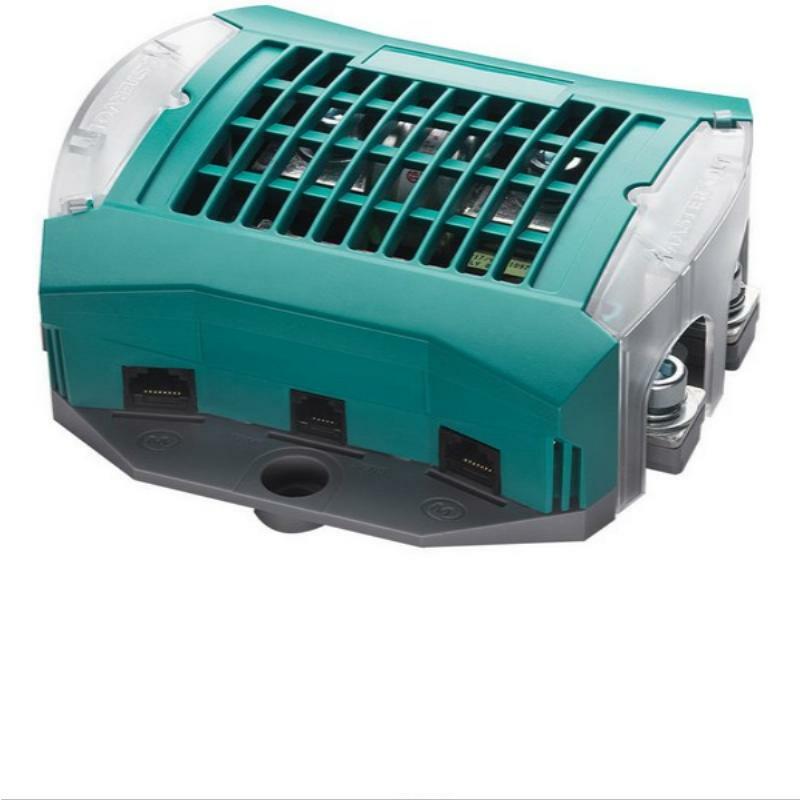

This ultra-modern battery monitor provides detailed information on the status of your batteries, including voltage, current, remaining time and used capacity in percentages so no more unpleasant surprises. With an intelligent connection system, the MasterShunt is easily connected to the DC Distribution.
The integrated system clock combined with command-based events automates your system according to your needs. A good example of such system automation: The generator should start automatically when the batteries are almost depleted.
The MasterShunt also has a built-in robust main fuse that can safely break short-circuit currents of 50,000 amps.
| BLA Code | 110550 | 110552 |
| Battery types | gel, AGM, wet, Lithium Ion, spiral | gel, AGM, wet, Lithium Ion, spiral |
| Battery voltage | 12, 24 or 48V DC | 12, 24 or 48V DC |
| Current | 300A continuous / 500A for 5 minutes | 300A continuous / 500A for 5 minutes |
| MasterBus powering | Yes | Yes |
| System functionality | alarm, timers, auto start/stop for the generator | alarm, timers, auto start/stop for the generator |
| Programmable alarms | warning low voltage, warning low state of charge, high voltage | warning low voltage, warning low state of charge, high voltage |
| Dimensions (H x W x D) | 150mm x 150mm x 65mm | 150mm x 150mm x 65mm |
| Weight | 1kg | 1kg |
| Protection degree | IP21 | IP21 |
| Delivered with | MasterShunt, temperature sensor, MasterBus Terminator, MasterBus cable, cable protections for DC connections | MasterShunt, temperature sensor, MasterBus Terminator, MasterBus cable, cable protections for DC connections |
