Description
Lenco limited space trim tab kit designed for boats 5m to 8m in length.
Kit Includes:

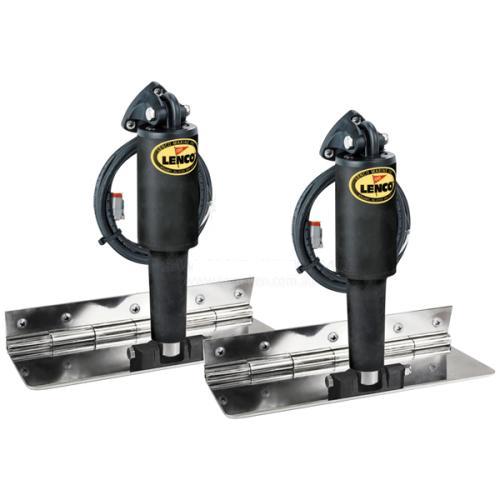

- 2 x 12 volt XDS actuators with 1.8m cable and Deutsch connectors.
- 2 x actuator extension wiring harness (6m) Deutsch connectors.
- 2 x stainless steel electropolished, limited space plates with welded on lower mount bracket 5/16" hole.
- 1 x set of stainless steel fasteners.
- 2 x upper mounting bracket with gland seal.
- 2 x XD lower mounting bracket.
- Compliance: CE Certified .
- 5 Year Warranty (Recreational Use).
Note - Switch kit sold separately.
Part No.55415

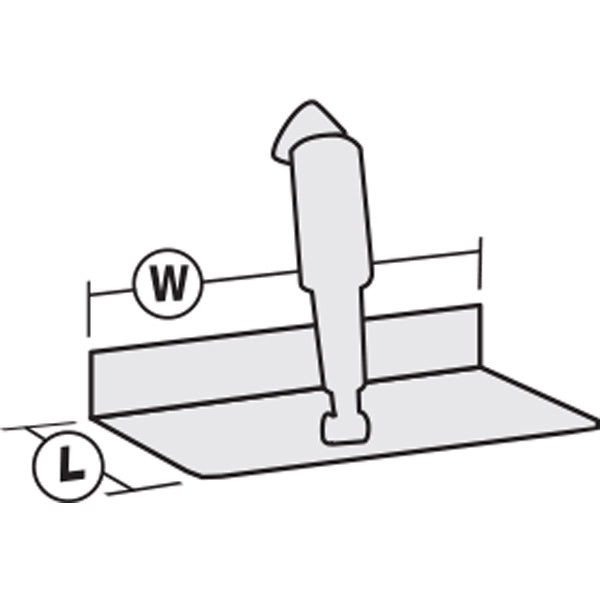

Length 4 inch (101mm)
Width 12 inch (305mm
)Hinge Height51mm

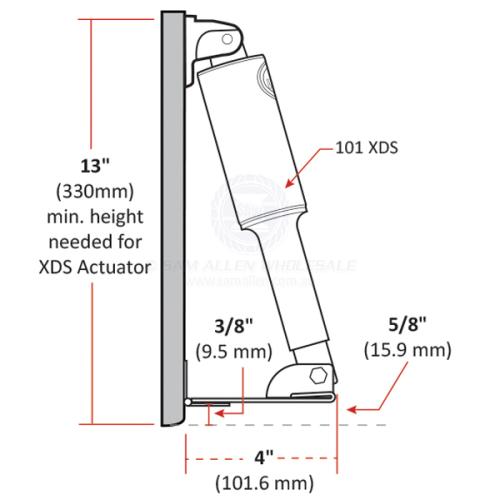

Min. Transom Height 330mm
Approx Boat Length5Mtr - 8Mtr
FinishElectro Polished
