Description

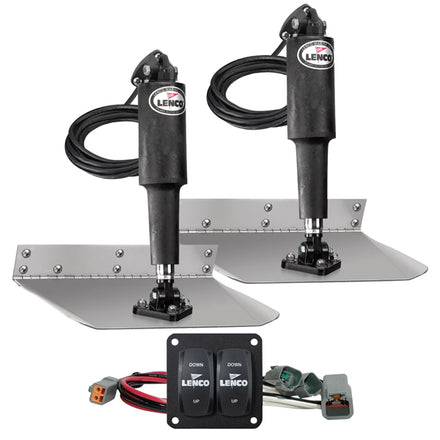

LENCO TRIM TAB - COMPLETE STANDARD MOUNT & ROCKER SWITCH KITS
- 122 carling double rocker switch.
- 12/24 volt.
- Plug and play Deutsch connectors.
- 36" power pigtail and mounting hardware.
- Installation hardware included.
- Does not require control box.
Standard Mount Trim Tab Kits:
• 2 x Standard Mount Plates, 12 Gauge (2.7mm) - 304G stainless steel with a 5/8" flared trailing edge and 1/8" diameter hinge pin.
• 2 x 12 volt 101 actuators with 1.8m cable and Deutsch connectors.
• 2 x actuator extension wiring harness (6m) with Deutsch connectors.
• 1 x set of stainless steel fasteners.
• 2 x upper mounting bracket with gland seal.
• 2 x lower mounting bracket.
• Lenco owner’s installation manual.
| 55410 | Lenco 9" x 9" Standard Mount Trim Tab & Double Rocker Switch Kit | 9" (228mm) | 9" (228mm) | ||
| 55412 | Lenco 9" x 12" Standard Mount Trim Tab & Double Rocker Switch Kit | 9" (228mm) | 12" (305mm) |
