Description

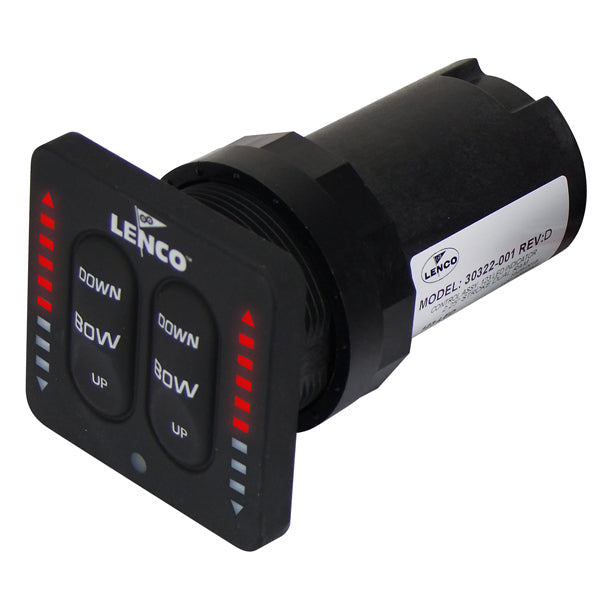

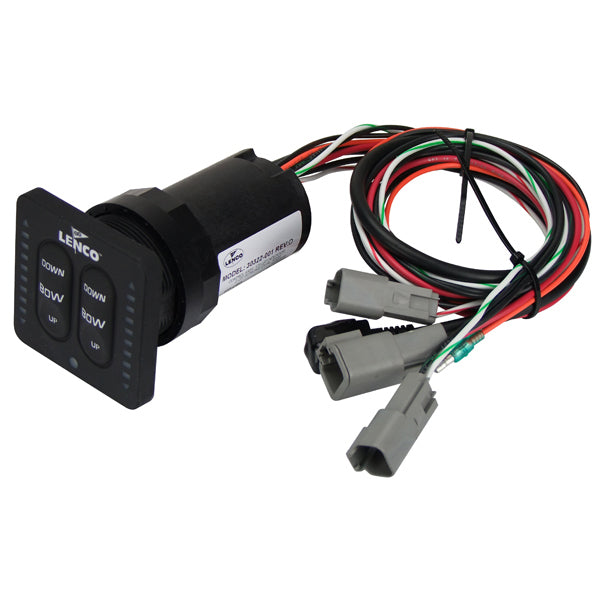

This LED Indicator Integrated Trim Tab Switch is an all in one, low profile design for simple, quick, plug and play installation and features;
- Instant response.
- Built-in retractor.
- Self-contained key pad with waterproof Plug & Play Deutsch connectors.
- Suits Lenco plate kits with single actuator per plate.
- 2 high-intensity LED Indicator displays show the exact position of your trim tabs at all times.
- Wiring harness length 30" (76.2 cm) from the back of the switch bezel.
- 2-1/16" hole cut-out size, overall key pad size of 2.75" x 2.75"
- 4.08" clearance required from the back of the key pad's mounting location.
- 36"(91.4cm) Power Pigtail.
- Photo Eye for optimum viewing in all light conditions.
- Backlit key pad for optimum viewing at night.
- Self-Check feature
- Compliance: CE Certified .
- 3 Year Warranty (Recreational Use).
