Description

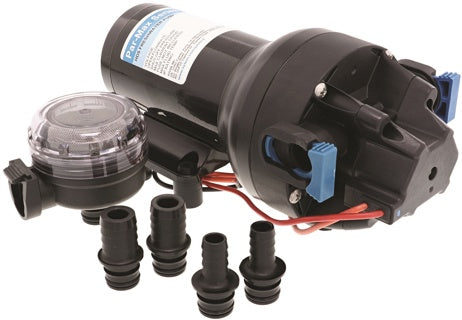

12 volt 40 PSI Par-Max 5.0 HD JABSCO P501J-115S-3A
These Heavy Duty (HD) Par-Max 5 freshwater pressure pumps off er robust construction and high performance. These new modern design pumps have a 5 chamber diaphragm with reinforced polypropylene pump head and offers pressure up to 60PSI.
These heavy Duty (HD) models include a heavy duty wider diameter motor with a powder coated shell, cast aluminium end bells and lower housing - to improve pressure capability and off er longer life and exceptional performance.
The ideal robust heavy duty pump for providing freshwater automatically to up to 4 x 20mm outlets on pleasure craft up to approx the 15 metre (50 Ft) range. Includes a 40 mesh plug-in universal inlet strainer in the box with the pump.
HD 5 chamber automatic pressure pump gives fl ow up to 5 US Gallons per minute (19 litres per minute) and pressure up to 60 PSI. Serves up to 4 x 20mm outlets onboard including galley, shower and additional faucets.
The Par-Max 5.0 HD gives very smooth water flow even at low demand due to its built-in pulsation dampening by-pass valve which controls unwanted cycling and reduces noise.
Inlet filter, corrosion resistant motor, soft rubber vibration dampening mounts and 4 x quick connect plug-in hose ports included - 2 x 12mm & 2 x 20mm barbed for hose. Uses standard size Jabsco plug-in ports.
12 volt ONLY - in 40PSI or 60 PSI cut-out pressure versions
Features and Benefits -
These Heavy Duty (HD) Par-Max 5 freshwater pressure pumps off er robust construction and high performance. These new modern design pumps have a 5 chamber diaphragm with reinforced polypropylene pump head and offers pressure up to 60PSI.
These heavy Duty (HD) models include a heavy duty wider diameter motor with a powder coated shell, cast aluminium end bells and lower housing - to improve pressure capability and off er longer life and exceptional performance.
The ideal robust heavy duty pump for providing freshwater automatically to up to 4 x 20mm outlets on pleasure craft up to approx the 15 metre (50 Ft) range. Includes a 40 mesh plug-in universal inlet strainer in the box with the pump.
HD 5 chamber automatic pressure pump gives fl ow up to 5 US Gallons per minute (19 litres per minute) and pressure up to 60 PSI. Serves up to 4 x 20mm outlets onboard including galley, shower and additional faucets.
The Par-Max 5.0 HD gives very smooth water flow even at low demand due to its built-in pulsation dampening by-pass valve which controls unwanted cycling and reduces noise.
Inlet filter, corrosion resistant motor, soft rubber vibration dampening mounts and 4 x quick connect plug-in hose ports included - 2 x 12mm & 2 x 20mm barbed for hose. Uses standard size Jabsco plug-in ports.
12 volt ONLY - in 40PSI or 60 PSI cut-out pressure versions
Features and Benefits -
- Fully automatic operation with integrated sealed pressure switch
- Pressure switch 40PSI or 60PSI cut off
- High capacity flow up to 19 litres 5 US gallons per minute
- Serves up to 4 x 20mm outlets on board simultaneously
- Modern 5 chamber design gives ultra smooth fl ow and quiet operation
- Built-in internal by-pass lowers water pulsation
- Self primes to 2.4 metres (8 feet)
- Can be installed vertically or horizontally
- Can be run dry for short periods without damage
- Powerful heavy duty ignition protected motor with thermal protection TCO
- Vibration dampening base plate & feet for quiet efficient operation
- Available in 12 volt only in both 40PSI & 60PSI versions
