Description

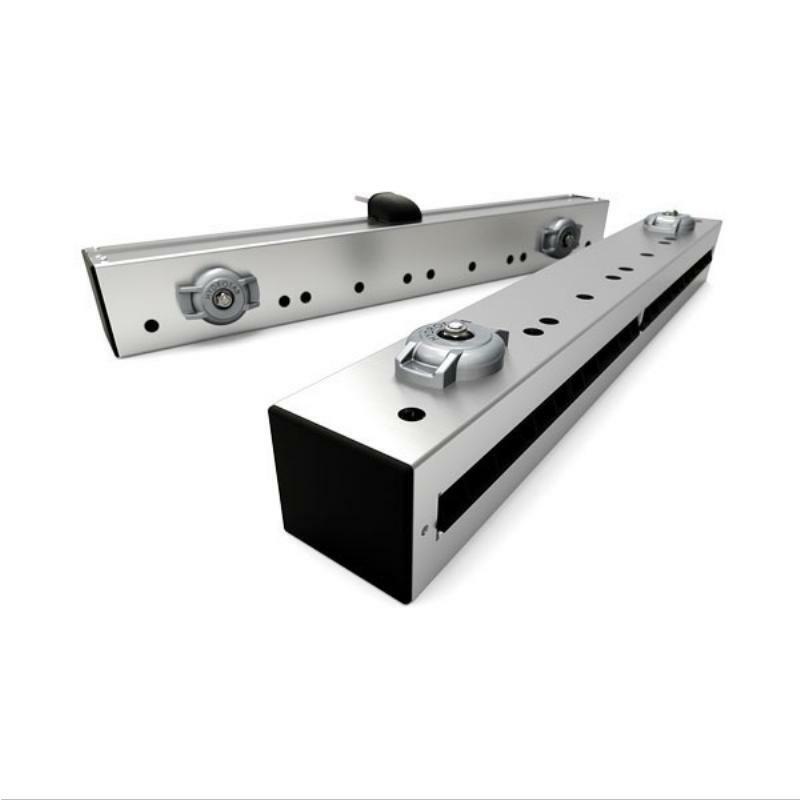

HydroTab Interceptor Trim Tabs - 480BT
480BT Trim Tabs Interceptors for speedboats. HydroTab Interceptor Trim Tabs are fitted to the boat’s transom, and are connected to a independent air unit. They operate with extreme accuracy and assist in better and more direct boat control and planning, even in the harshest weather conditions, making your trip safer. Furthermore, because of the cruising angle correction, fuel consumption is significantly reduced.
Advantages
- Increased planing speed due to the correct angle of the hull, which also leads to reduced fuel consumption
- Immediate response - accurate operation
- Easy - simple- fast installation
- Maintenance free
- Fouling resistant due to the composite material of the blade
- Self-cleaning by water flow
- Robust INOX 316 steel housing construction
- Due to their compact design and operation, the units will not affect the course of the boat when reversing
- Shock resistant during repetitive boat jumping
- Automatically retracts when the engine switches off or on
- Thanks to its innovative patented technology, high shifting forces easily break any fouling on the external surface of the units. The internal components remain clean due to the lack of light
Features:
- Material: INOX 316
- Pressure: 3 bar
- Strength: 861kg
- Capacity: 0.68L
- Weight: 5.5kg
| CASSELL PART NUMBER | CONTROLLER | MODEL | NMEA | SUGGESTED BOAT SIZE | DIMENSIONS (A X B X C) |
|---|---|---|---|---|---|
| BLA-312304 | 3DHC | 320BT | No | 6.2m-10m | 544mm x 89mm x 115.5mm |
| BLA-312306 | 4DHC | 320BT | Yes | 6.2m-10m | 544mm x 89mm x 115.5mm |
