Description

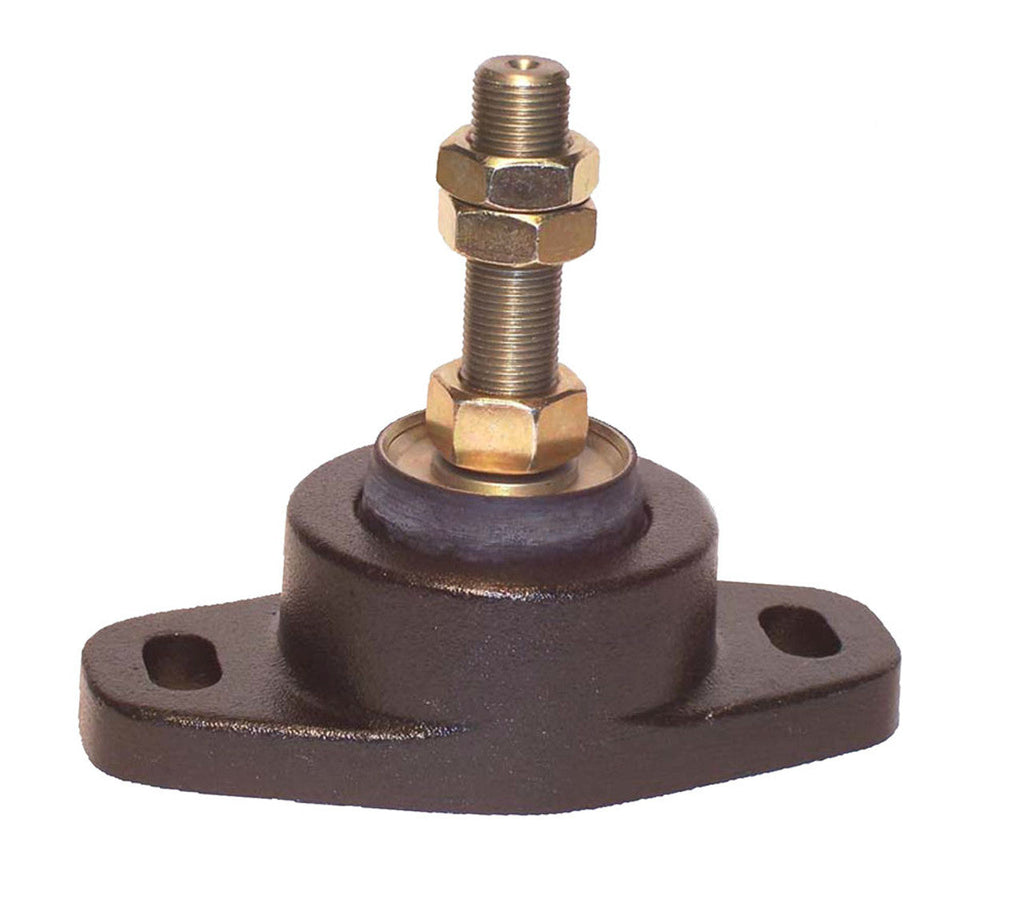

Dual Flex Marine Mount - DF-477-M3 Suitable for Cummins engines: Cummins - 4BT & 6BT Replaces: 3349230 The Dual Flex DF-477-M3 Heavy duty mounts are designed for diesel engines in the 1,200 – 1,600 lb. range. Base casting features heavy duty aluminum alloy construction, with lip incorporated in the top of the casting to resist the upward pull of the engine – coated black to resist corrosion. Durable oil and fuel resistant elastomer element. Low profile mount - requires only 3” minimum clearance from casting base to top of leveling nut. True floating mount with fail safe design - bottom cast base pad prevents excessive impact. Easy installation with 3/4” threaded stud for vertical height and slotted casting for horizontal adjustment. Mounts come complete - with three nuts: leveling, locking and secondary lock. Aluminum base cast with 1/2” slotted holes for 1/2” bolts or lag screws. All steel parts are zinc plated for corrosion resistance. Available in three size ratings dependant on engine/powertrain package weight. Engine Weight Suggested With 4 Point Mountings 1,200 to 1,600 lbs. DF-477-M3
