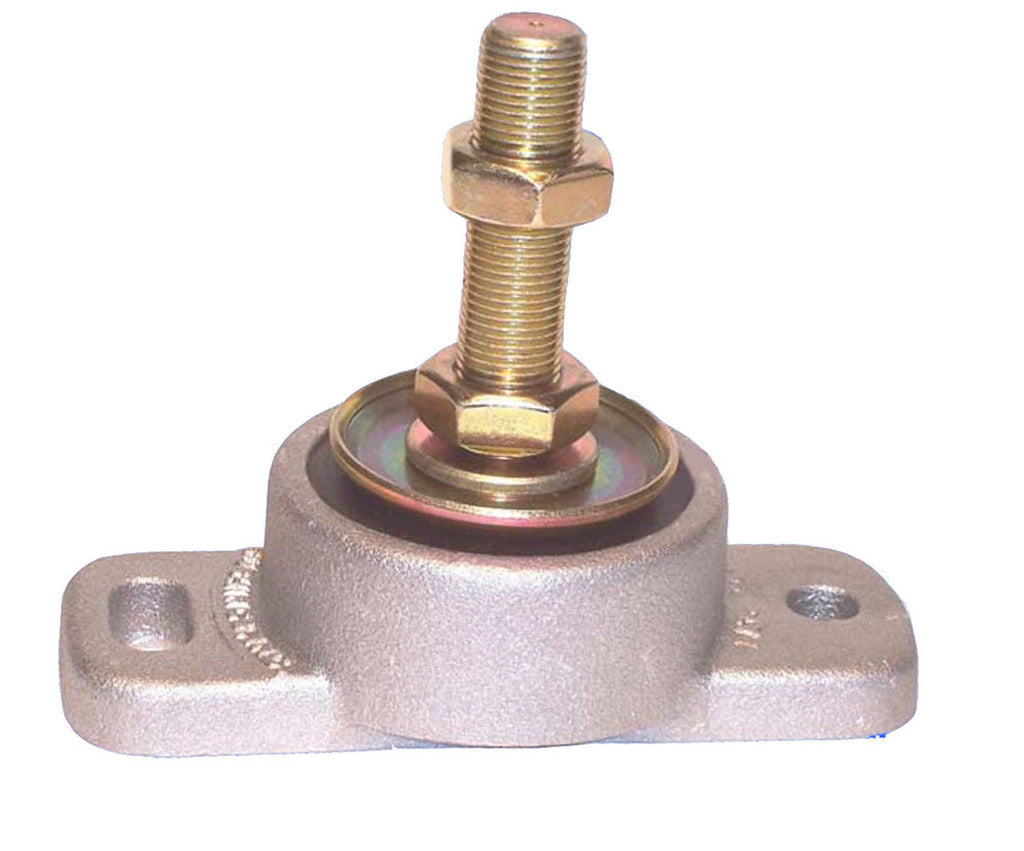

Dual Flex Marine Mount - DF-100 The Dual Flex DF-100 Engine Mount features: Heavy duty cast aluminum alloy construction with a durable oil and fuel resistant elastomer element for long life. Lowest profile mount-requires only 1 7/8” minimum clearance from casting base to top of leveling nut.
Easy installation with threaded 5/8” stud for vertical height adjustment, comes complete with leveling and locking nuts. Aluminum base cast with one 3/8” mounting hole and one slotted hole for either 3/8” bolts or lag screws, on 4” centers.
All steel parts are zinc dichromate plated for corrosion resistance. Engine Weight Suggested With 4 Point Mountings Up to 850 lbs DF-100
