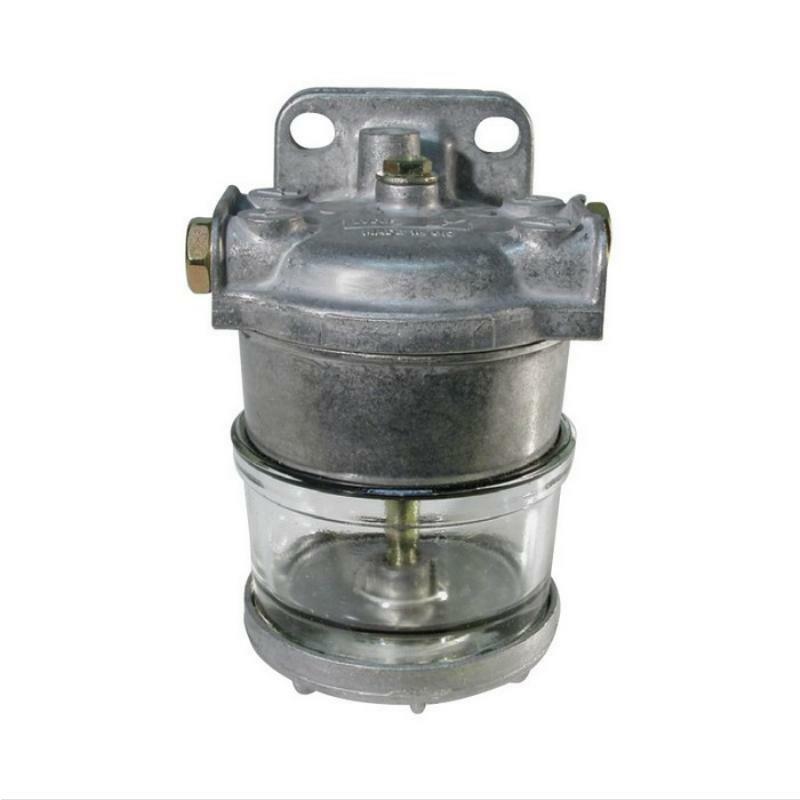

Diesel & Petrol Sediment Filter manufactured by Delphi 'CAV'.
- Watertrap or sedimenter which removes water and large particles from fuel.
- Glass bowl for quick visual inspection of fuel condition.
- Typically abrasive particles of 100 microns and water particles of up to 300 micron size can be filtered.
- Up to 150cc of water can be collected in the bowl and drained without dismantling.
- Base and head constructed of aluminium.
- This filter has no gauze or paper element and is suitable for petrol, including 2 stroke and diesel.
- 10mm fastening holes
- 172mm overall height
- 107mm maximum width
- 45L/hr flow rate

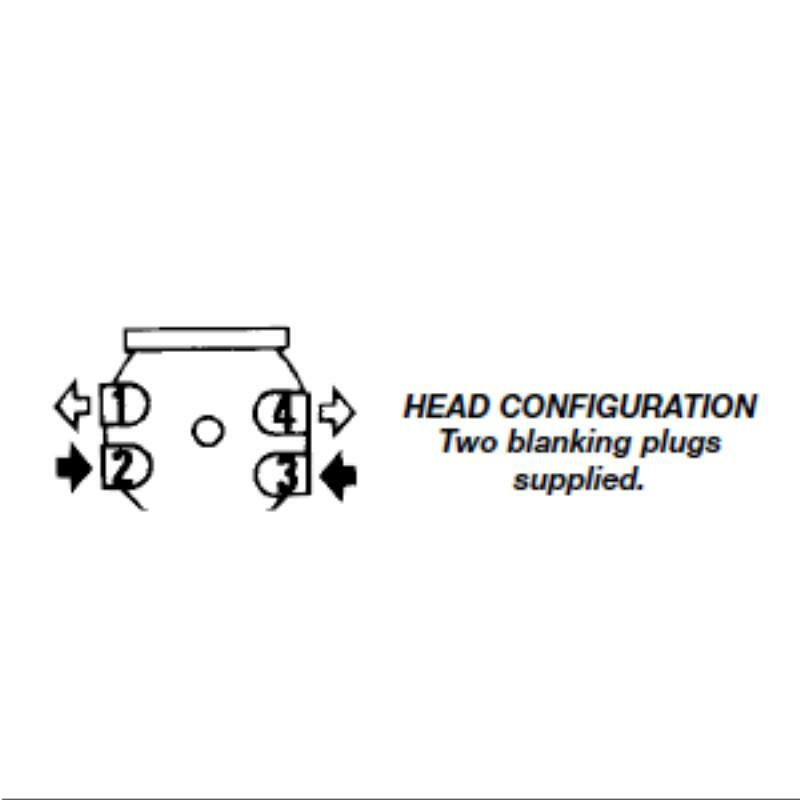

- Inlet/outlet 1⁄2" x 20 UNF
