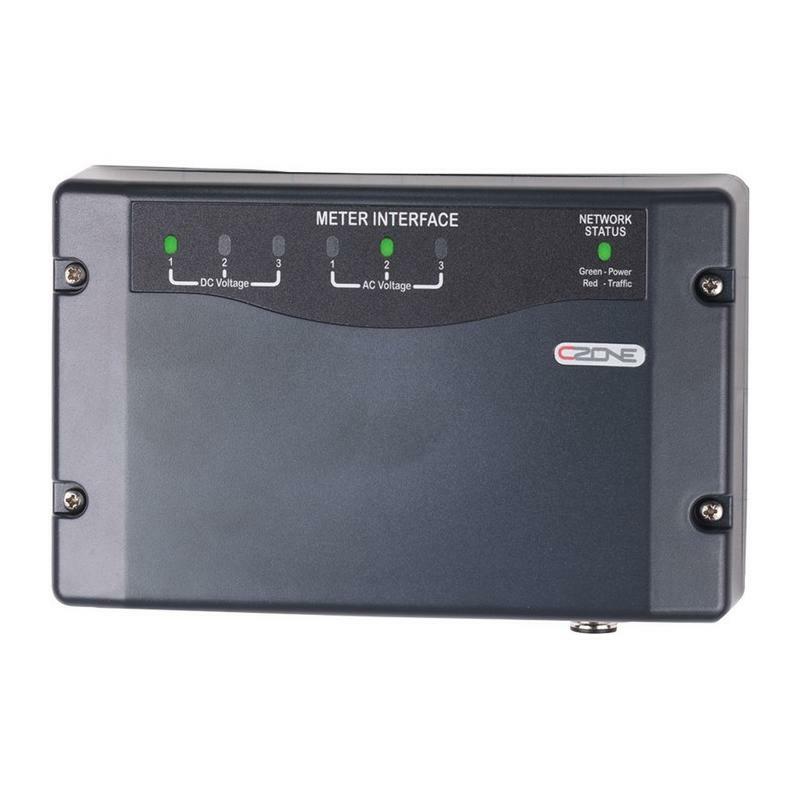

CZone Meter Interface

SKU: BLA-112812

Price:
Sale price$816.05 Regular price$859.00

Description

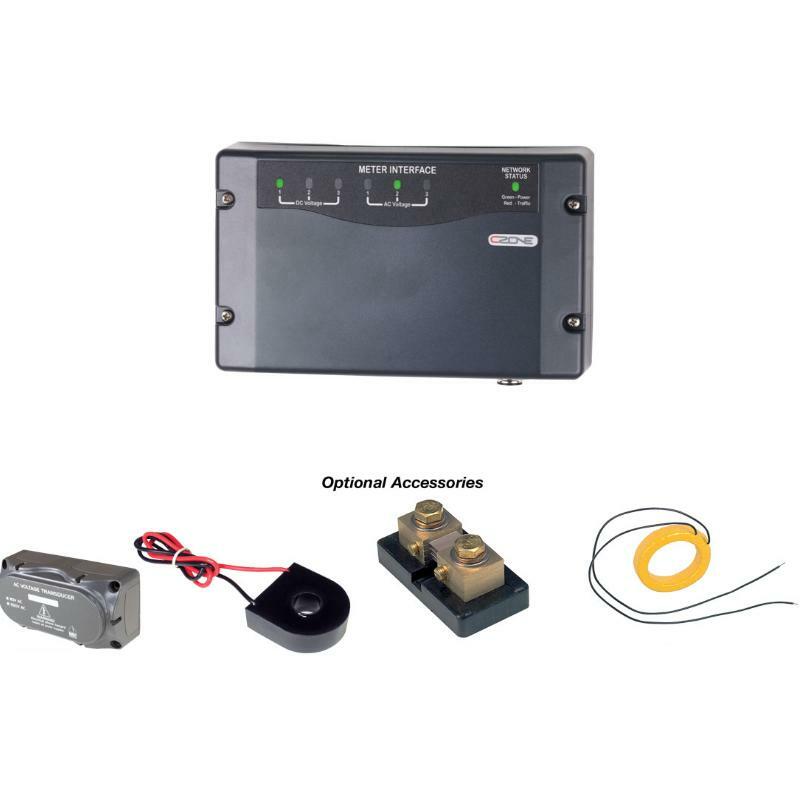

The Meter Interface (MI) accepts inputs from external AC and DC power metering sensors such as: AC and DC voltage and amps, AC kilowatts, and DC battery capacity in amp hours and % remaining.

All with user definable high and low alarms.

AC:

  • 3 x AC voltage inputs (multi voltage)
  • 2 x AC current inputs
  • Calculates true RMS power

DC:

  • 3 x DC voltage inputs (multi voltage)
  • 2 x DC current inputs
  • Calculates battery capacity as ampere hours and percentage charge remaining for two battery banks
  • Resolution for current metering down to 0.1A

General:

  • Dimensions, WxHxD: 156mm x 100mm x 42mm

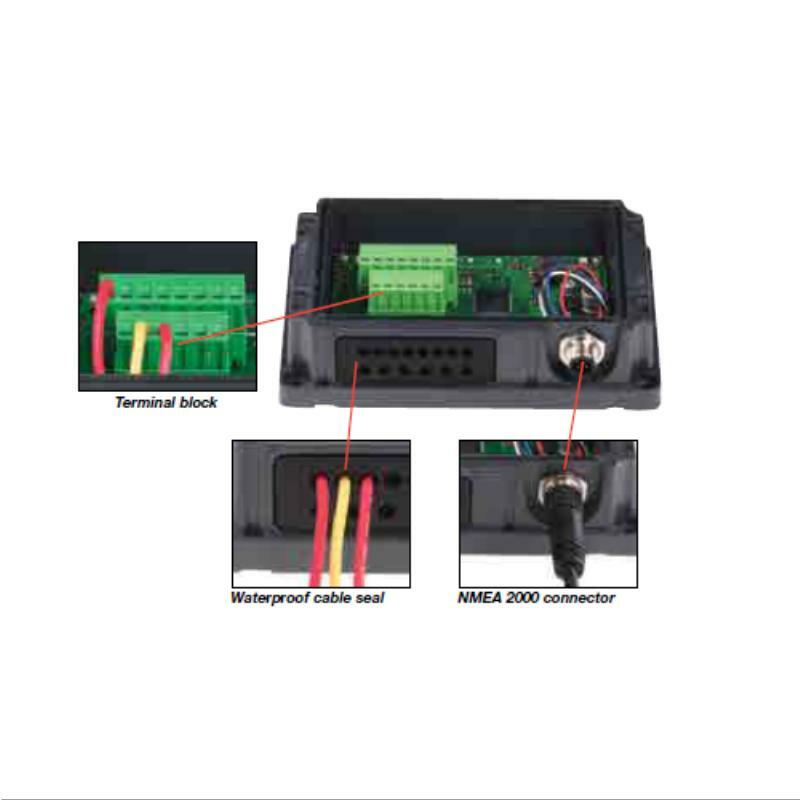

  • IPX5 water ingress protection
  • Outputs standard NMEA2000 power monitoring sentences
