Description

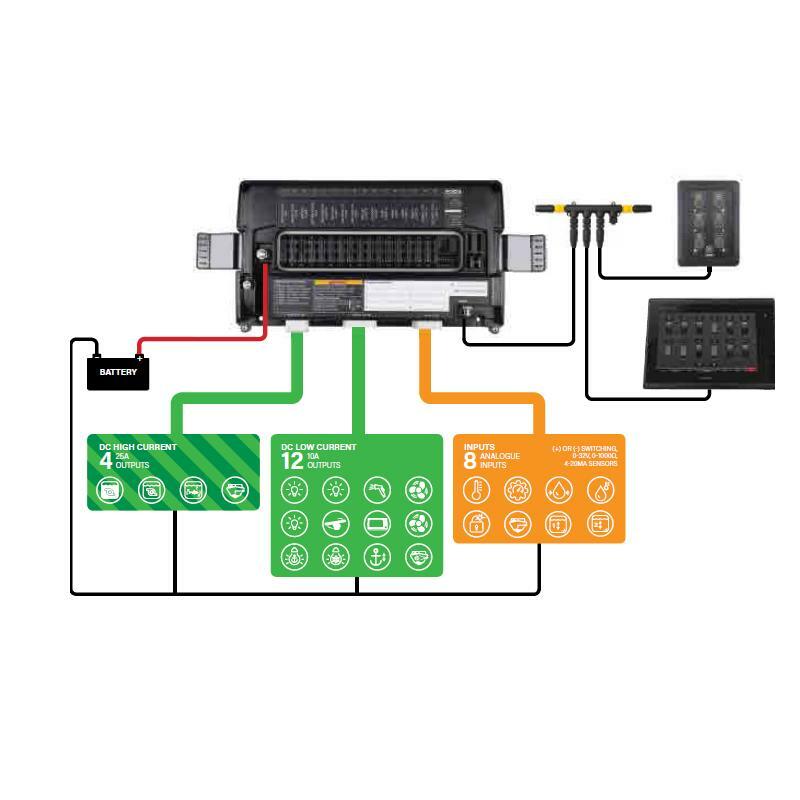

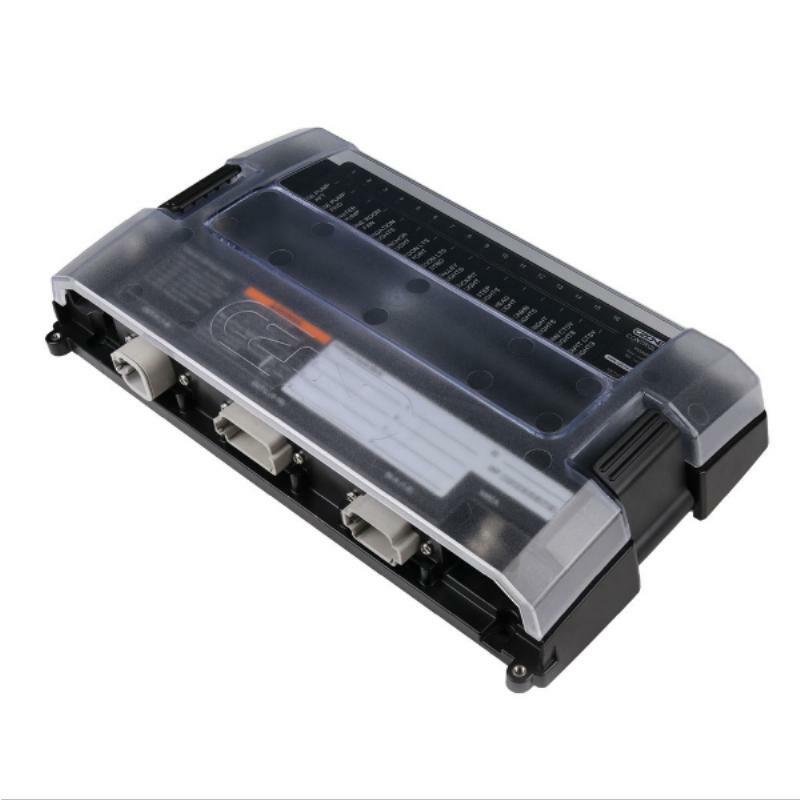

The Control 1 combines multiple input and output devices into a single rugged IPX5 module featuring industry leading CZone digital switching functionality and complete mechanical fuse and bypass on each circuit.
Features:
- Complete CZone Control and Monitoring system in a single box
- Modular design provides system options for wide range of vessels & RV’s
- Compatible with marine multi-function and black box chartplotter/fishfinders
- Equipped with advanced core CZone feature set
- Competitive price point for cost sensitive applications
- ABYC compliant ATC fusing and mechanical bypass for redundancy
- PWM light dimming capability & smooth start
- Monitor tank levels, battery volts, temperature and pressure using industry standard sensors
- Bilge Pump Run Detection allows pump control and monitoring from a single wire
- Status LED’s for all outputs, DC supply & NMEA2000
- Additional volt monitoring on main DC connection and N2K
- In-built load shedding allows non-necessary loads to be turned off to preserve battery life
- USB port allows full system firmware & config updates (no PC or adapters required)
| Output Channels High | 4 x 25A |
| Output Channels High | 12 x 10A Dimmable |
| Analogue Inputs | 8 x Analogue Inputs: Positive or Negative Switching, 0-32 Volt, 0-1000 Ohm Resistance & 4-20mA Current |
| Additional Monitoring | 1x Volt Sense on Main Positive Stud |
| Circuit Protection | ATC Fuse with Fuse tripped & fuse in bypass alarms |
| NMEA2000 PGN Output | Fluid Level, Pressure, Temperature, Battery Volts |
| Connectors | Deutsch DTP and DT |
| Maximum Continuous Current | 150A @ 40°C (104°F) - derating above 40°C (104°F) |
| Power Supply | M8 (5/16”) Stud Positive, M6 (1/4”)Negative |
| Voltage | 9-32V (with Power Available LED) |
| Power Consumption | Operating (All Channels On) = 100mA @ 13.2V Operating (All Channels Off ) = 75mA @ 13.2V |
| Circuit Bypass | Mechanical Protection/Bypass All Output Channels |
| Bilge Pump Circuits | 4 x Channels High: Integrated manual control & pump running detection |
| Ingress Protection | IPx5 (mounted at 0°, +/-90°) |
| Communication | NMEA 2000 |
| Weight | 1.9kg |
| Certification | CE, ABYC, NMEA, ISO8846/SAEJ1171 Ignition Protected |
