CZone 5" Touch Screen Kit

Sale price $2,193.55 Regular price $2,309.00

Tax included. Shipping calculated at checkout.

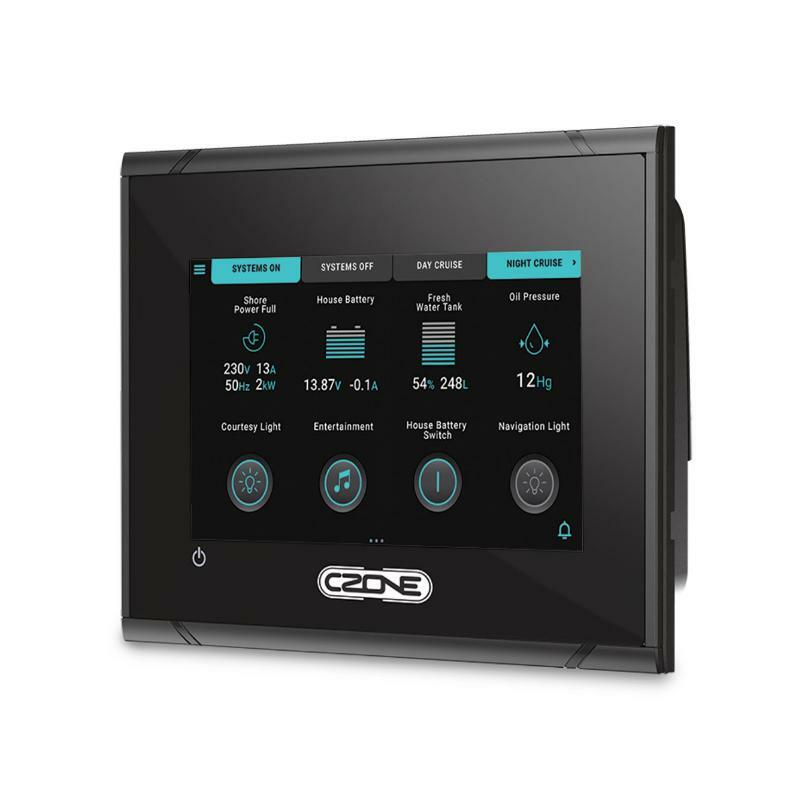

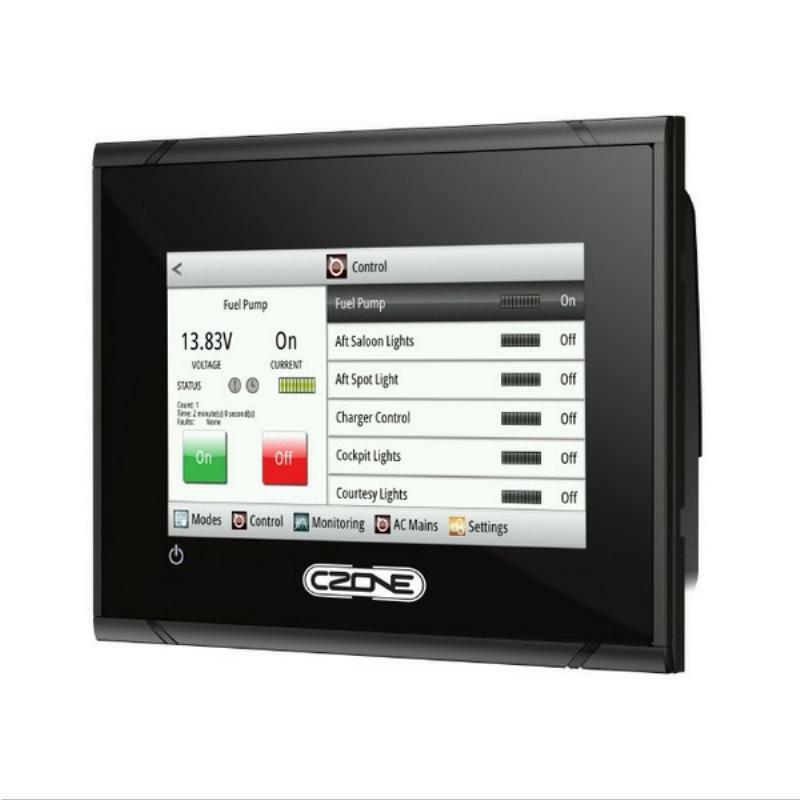

The gateway to your CZone digital switching and Mastervolt power electronics system is now also available on a compact 5” model, the new CZone Touch 5. The sleek, attractive screen design will complement the interior of any high-end vessel or recreational vehicle, while offering the very latest generation capacitive touch screen technology.

The high bright display outperforms in sunlight and the improved screen resolution provides a detailed and crisp graphical user interface. All of this has been packaged into an innovative, splash-proof marine mounting system to provide an outstanding ‘human-machine’ experience.


  • Easy to use touch interface
  • Glass dash styling
  • Super bright widescreen display
  • Low profile flush mounting
  • IPX7 water ingress protection
  • Built-in WiFi connectivity
  • Micro SD Card Slot
  • NMEA 2000 compatible

WiFi Connectivity:

  • Internal WiFi allows direct connection of iPad for on-board wireless control and monitoring
  • Reduced system cost and complexity, combines Display and Wireless Interface functionality in to one unit
Description Czone Touch 5 Kit
Display Type WVGA Colour TFT LCD
Display Size 5-inch Widescreen
Display Resolution 480 x 800 pixels
Backlight Levels LED/1200 nits
Operating Temperature -15°C to +55°C (5°F to 131°F )
Waterproof Standard IPX7
Power Consumption 900mA @ 13.5V
Power Supply 12VDC
Conformity CE, C Tick
Dimensions (H x W x D) 120mm x 152mm x 57.9mm
