Description
Newton - The Aero Range of filler caps produce the largest range of aftermarket tank filler caps to suit any application, small or large.
They can with stand most automotive fluids including: fuel, oil & water.
To operate the caps is simple. To release the filler cap, lift the lever to verticle, turn and pull the cap out. To replace and secure the cap, place the cap in the mounting flange, turn the lever to the central position and snap the lever down or closed.

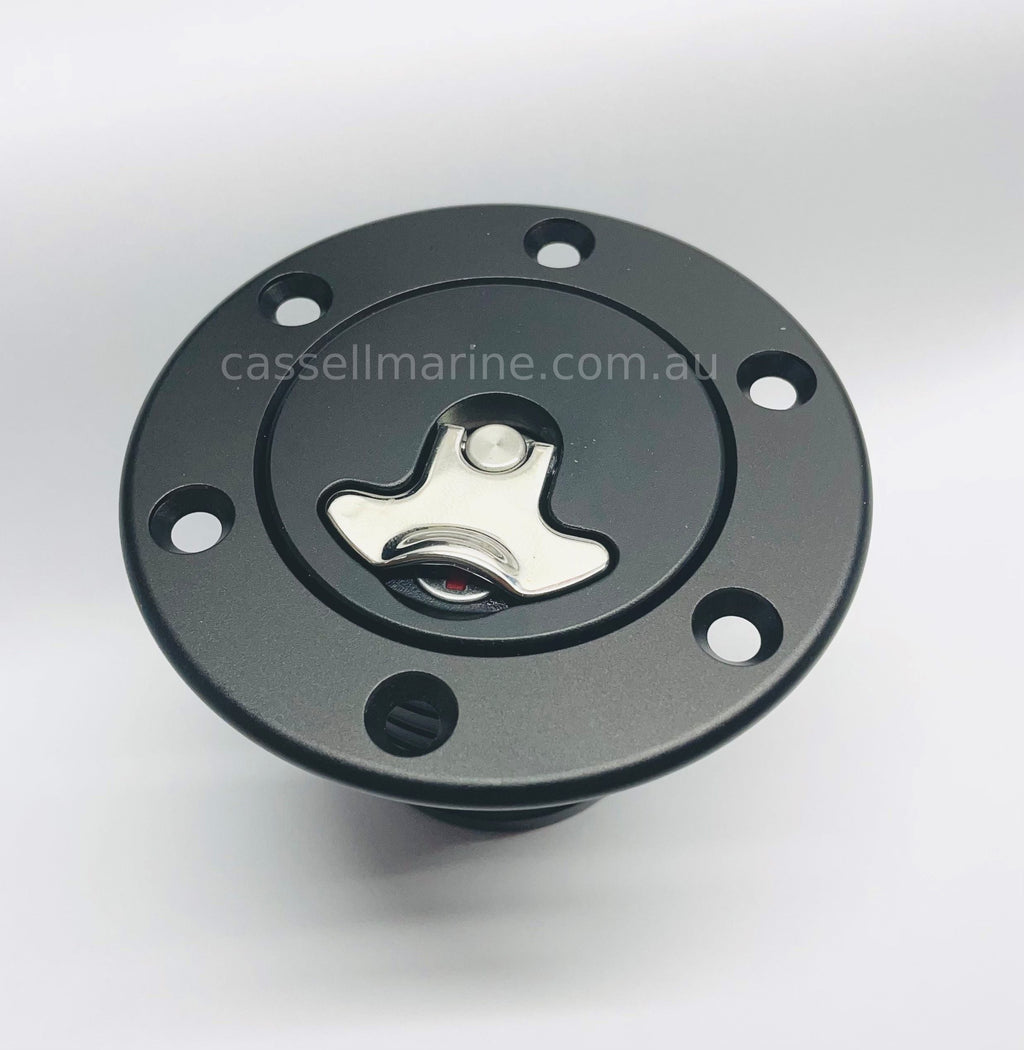

AERO36: The Aero 300 style was introduced over 10 years ago and since then has become the worlds most popular aircraft style filler cap. It is the first choice amongst designers and installers for every type of vehicle, be it land, sea or air! We carry this size in many different combinations from tank mounted to neck style fillers. The AERO36 is a neck style filler cap designed to bolt to a guard or panel for remote filling.
- Machined from 6082/T6 Aluminium Alloy
- Flange sealed with fuel resistant O ring
- Cap and flange are polished and clear anodised
- 6 Bolt Flange
- Supplied with S/S Bolts, nuts and fibre gasket
- Neck accepts 51mm & 58mm filler hose
- Aero36NL Key Locking
- Aero36NS Non-locking

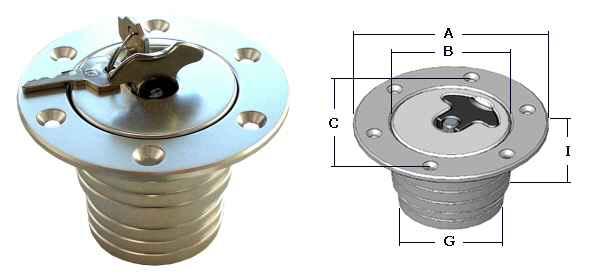

- Dimensions
-
Part Number
AERO36NS
AERO36NL
Flange Diameter (A)
94.0mm
94.0mm
Cap Diameter (B)
58.0mm
58.0mm
Bolt Centre (C)
76.2mm
76.2mm
Overall Depth (I)
62.4mm
62.4mm
Bore
44.5mm
44.5mm
Spigot
62.4mm
62.4mm
Body Diameter
58.0mm
58.0mm
Neck Diameter (G)
58.0/52.0mm
58.0/52.0mm
Flange Thickness
3.25mm
3.25mm
Locking
No
Yes
