Description
350 Amps continuous rated battery switches for simultaneously switching two isolated battery banks or circuits BS-5510E- Simultaneously switches two isolated battery banks or circuits.
May be used to switch the positive and negative conductors for required applications BS-5511E(B) - Simultaneously switches two isolated battery banks or combines battery banks to all loads.
CAN NOT be used to switch and positive conductors due to its combine feature.
Features:
- Tin-plated copper studs for maximum conductivity and corrosion resistance
- Accepts up to 4/0 AWG (120 mm²) battery cables
- Studs accept 3/8" (M10) ring terminals
- Fits most Perko and Guest low amperage battery switch hole patterns

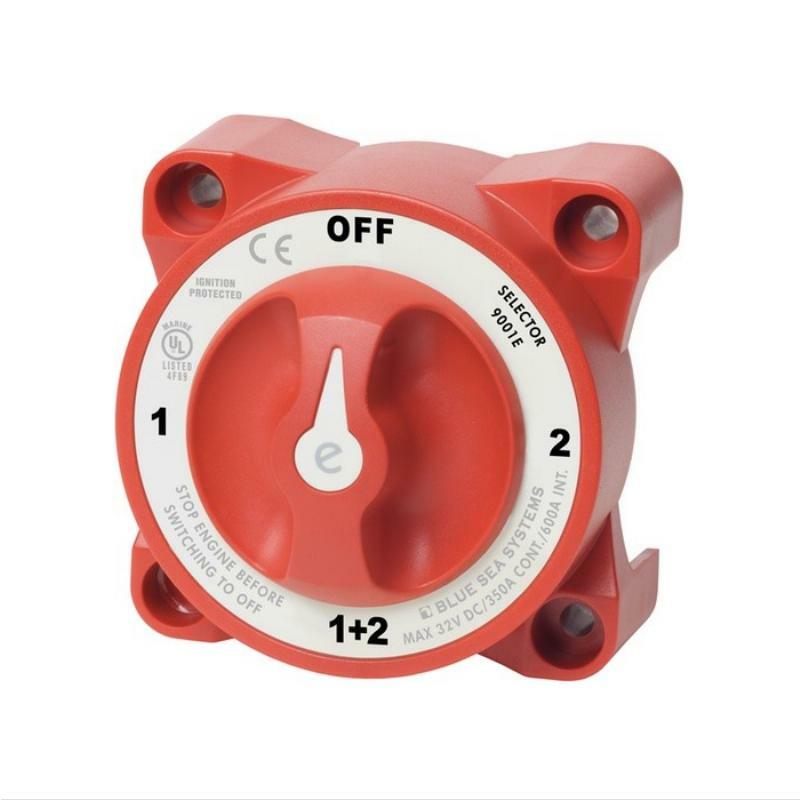

| BLA Code | BS-9001E | BS-9002E |
| Description | Single Battery e Selector | Single Battery e Selector w/AFD |
| Cranking Rating: 30 sec. | 1200A | 1200A |
| Intermittent Rating: 5 min. | 600A | 600A |
| Continuous Rating | 350A | 350A |
| Voltage Max. Operating | 32V DC | 32V DC |
