Description

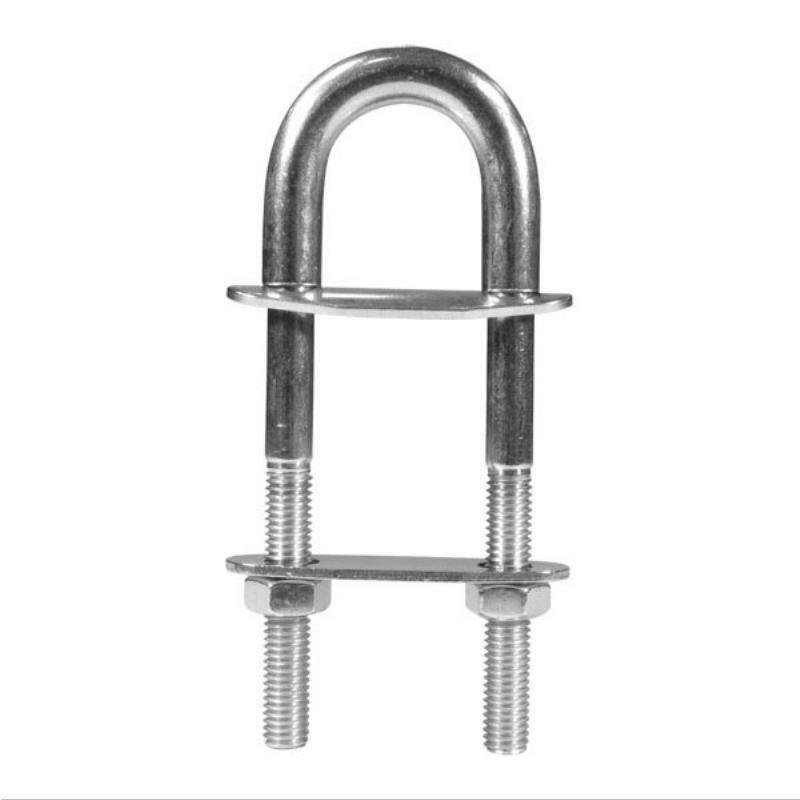

316 grade stainless steel. Stepped shank provides bearing surface for the curved top plate.
Cleaner looking product than the pinched type U Bolts
Backing plate and M8 nuts included.

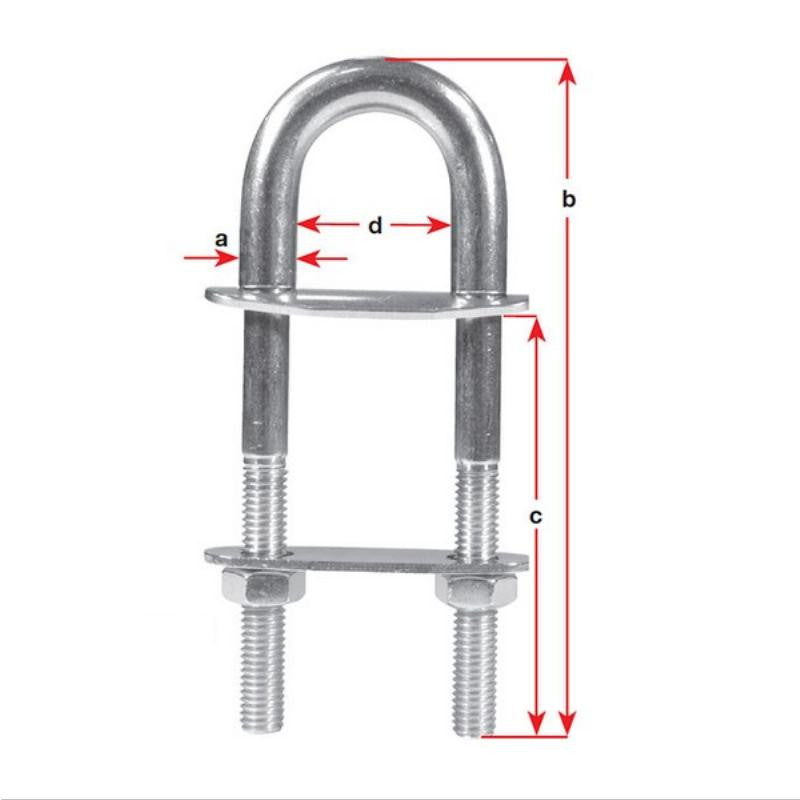

| P/N | Length (B) | Thickness (A) | Thread Length (C) | Width (D) | Thread |
|---|---|---|---|---|---|
| 165013 | 76mm | 10mm | 35mm | 25mm | M8 |
| 165014 | 90mm | 10mm | 50mm | 25mm | M8 |
| 165016 | 115mm | 10mm | 75mm | 25mm | M8 |
| 165017 | 140mm | 10mm | 100mm | 25mm | M8 |
