Description

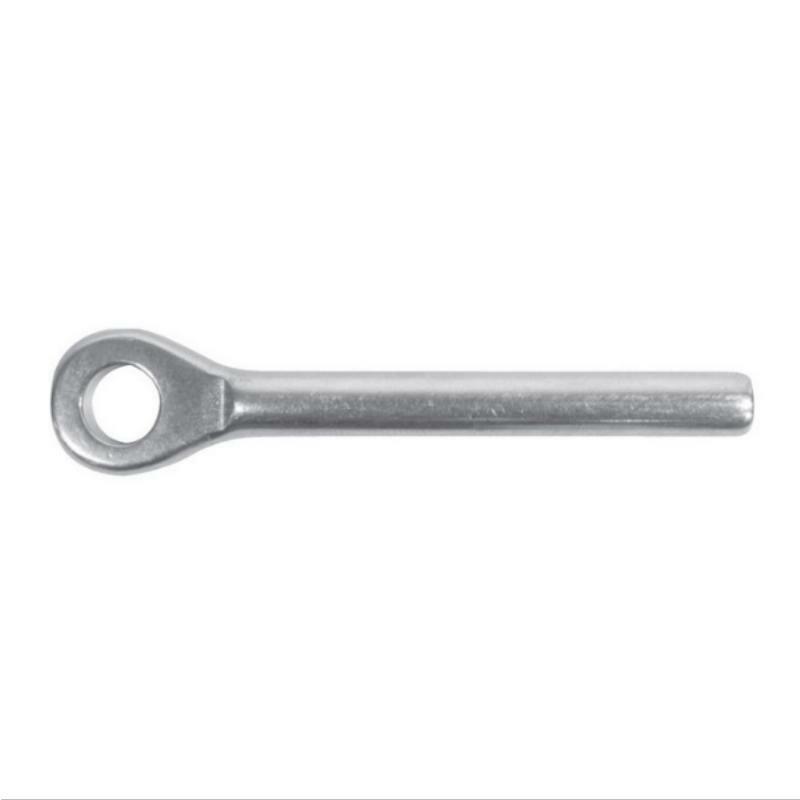

316 grade stainless steel swage eyes.
Commonly used in industrial and balustrade applications.
| CASSELL PART NUMBER | WIRE DIAMETER | LENGTH (A) | OVERALL WIDTH (B) | INTERNAL WIDTH (C) | BREAKING LOAD | |
|---|---|---|---|---|---|---|
| BLA-162190 | 3/32" | 2.5mm | 56mm | 13mm | 6mm | 850kg |
| BLA-162191 | 1/8" | - | 56mm | 13mm | 6.5mm | 1000kg |
| BLA-162192 | 5/32" | 4mm | 70mm | 16.5mm | 8.5mm | 1350kg |
| BLA-162193 | 3/16" | 5mm | 78mm | 20.5mm | 10.5mm | 2500kg |
