Description

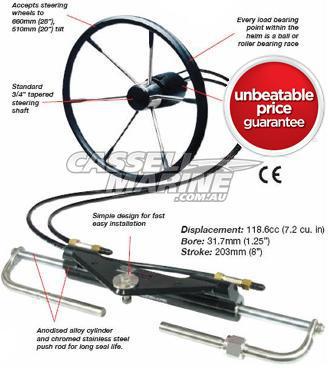

BayStar Plus outboard hydraulic steering has been developed by TeleflexMarine to suit most single outboard driven vessels up to 150HP*. For applications that exceed BayStar Plus’s torque rating please purchase one of our SeaStar® products.
Features:
• Patented No-Feedback steering lock valves
• Super low friction helm for smooth comfortable steering
• 5.5 turns lock to lock
• Balanced design that fits most splashwells
• Provides full engine movement
• Cylinders to suit most outboards
Three easy steps to order your BayStar Steering kit:
1. Check helm dimensions:
Front Mount Hydraulic Helm
• Used with both front and side mount cylinders
• Easily installed to your existing console to create a professional finish
• Easy front of console filling point for hydraulic oil
• Simple purging process
2. Check cylinder dimensions:
Front Mount Cylinder
• This compact unit fits narrow splashwells with only 534mm width required
• The steering cylinder is protected in the splashwell
• One common cylinder fits most outboards to 150HP
• Fits to outboard tilt tube
3. Splashwell:
Is there enough room in the splashwell for full engine tilt? Check your dimensions (A, B & C) and ensure that they are the same or more than what is listed.
Supplied in kit form with all the components required to complete your installation.
Kits Include:
• BayStar Plus helm pump standard 291490
• BayStar Plus front mount cylinder
• 15m 292997 semi-rigid nylon hose kit
• 4 x 293610 nut and olive kit
• 1 x 291898 filler kit
• 2 x 291902 1 litre Teleflex oil
* Not recommended for Mercury 150HP Optimax DFI
