Newton Aero 300 - Aero36NL Key Locking Aero 36 Deck Fuel Filler Cap suit Boat - Car - Truck

SKU: AERO36NL

Type: AERO36NL LOCKING
Price:
Sale price$336.00

Description

Newton - The Aero Range of filler caps produce the largest range of aftermarket tank filler caps to suit any application, small or large.

They can with stand most automotive fluids including: fuel, oil & water.

To operate the caps is simple. To release the filler cap, lift the lever to verticle, turn and pull the cap out. To replace and secure the cap, place the cap in the mounting flange, turn the lever to the central position and snap the lever down or closed.

AERO36: The Aero 300 style was introduced over 10 years ago and since then has become the worlds most popular aircraft style filler cap. It is the first choice amongst designers and installers for every type of vehicle, be it land, sea or air! We carry this size in many different combinations from tank mounted to neck style fillers. The AERO36 is a neck style filler cap designed to bolt to a guard or panel for remote filling.

  • Machined from 6082/T6 Aluminium Alloy
  • Flange sealed with fuel resistant O ring
  • Cap and flange are polished and clear anodised
  • 6 Bolt Flange
  • Supplied with S/S Bolts, nuts and fibre gasket
  • Neck accepts 51mm & 58mm filler hose
  • Aero36NL Key Locking
  • Aero36NS Non-locking

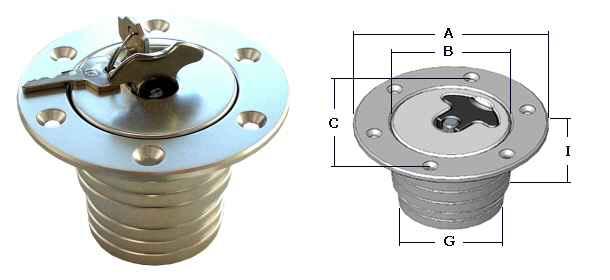

  • Dimensions
  • Part Number

    AERO36NS

    AERO36NL

    Flange Diameter (A)

    94.0mm

    94.0mm

    Cap Diameter (B)

    58.0mm

    58.0mm

    Bolt Centre (C)

    76.2mm

    76.2mm

    Overall Depth (I)

    62.4mm

    62.4mm

    Bore

    44.5mm

    44.5mm

    Spigot

    62.4mm

    62.4mm

    Body Diameter

    58.0mm

    58.0mm

    Neck Diameter (G)

    58.0/52.0mm

    58.0/52.0mm

    Flange Thickness

    3.25mm

    3.25mm

    Locking

    No

    Yes
