Description
BayStar Plus outboard hydraulic steering has been developed by TeleflexMarine to suit most single outboard driven vessels up to 150HP. For applications that exceed BayStar Plus’s HP rating please purchase one of our SeaStar products.
Features:
• Patented No-Feedback steering lock valves
• Super low friction helm for smooth comfortable steering
• 5.5 turns lock to lock
• Balanced design that fits most splashwells
• Provides full engine movement
• Cylinders to suit most outboards
* Not recommended for Mercury 150HP Optimax DFI
Three easy steps to order your BayStar Steering kit:
1. Check helm dimensions:
Front Mount Hydraulic Helm
• Used with both front and side mount cylinders
• Easily installed to your existing console to create a professional finish
• Easy front of console filling point for hydraulic oil
• Simple purging process
2. Check cylinder dimensions:
Front Mount Cylinder • This compact unit fits narrow splashwells with only 534mm width required • The steering cylinder is protected in the splashwell • One common cylinder fits most outboards to 150HP • Fits to outboard tilt tube
3. Splashwell:
Is there enough room in the splashwell for full engine tilt? Check your dimensions and ensure that they are the same or more than what is listed.
Features:
• The simplest of hydraulic installations
• One common cylinder fits most engines
• Convenient tilt tube mounting as per ABYC/NMMA/BIA standards
• Anodised alloy cylinder for reduced friction and longer seal life
• Chromed stainless steel push rod for extended seal life
• Patented No-Feedback steering lock valves
• 5.9 turns lock to lock

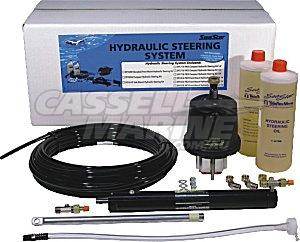

Kits Include:
• BayStar helm pump standard 291490
• BayStar side mount cylinder 291072
• 15m 292997 semi rigid nylon hose kit
• 2 x 293610 nut and olive kit
• 1 x 291898 filler kit
• 2 x 291902 1 litre Teleflex oil
